  Home > Characterization equipment > DN-AE03
DN-AE03

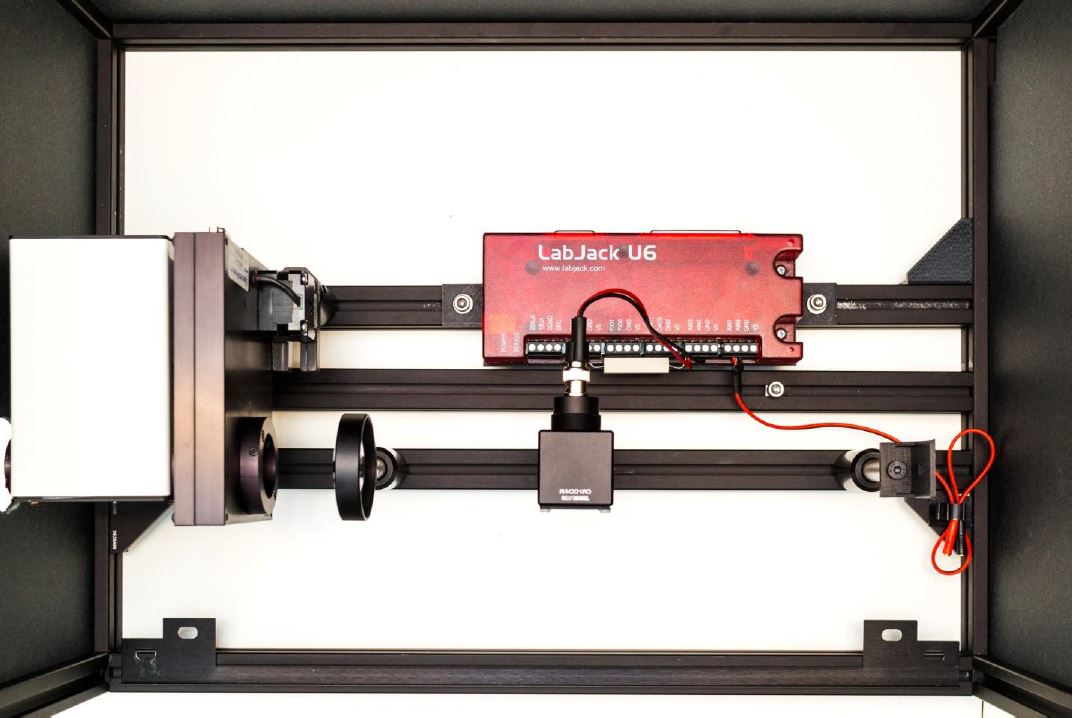

IPCE-equipment for taking IPCE spectrum of solar cells

ICPE

Product description:
This stand-alone piece of equipment has been developed for measuring IPCE (Incident Photon to Current conversion Efficiency) spectra for small solar cell devices with an active area of 1cm2 or less. IPCE is measured with the DC-method under short-circuit condition using low intensity monochromatic light. The spectral range is 330 nm to 1100 nm.

Analytical techniques included:
  • Automatic measurement of IPCE spectrum. The data is recorded in an easy to read text file.
  • Calculation of predicted JSC under AM1.5 G illumination (1000 W m-2)

Contents:
  • Stationary-based PC
  • Software
  • Dyenamo IPCE measurement equipment, including calibrated Si diode
  • English manual

Specifications:
  • Footprint:88 x 43 cm
  • Light source: 175 W Xe-lamp (ozone free)
  • Monochromator:Spectral bandwidth 20 nm
    oSpectral range 330 - 1100 nm
    o Monochromatic light intensity 0.1-0.5 mW cm-2
  • Filter:Filterwheel with order sorting filters
    oUV-enhanced version (250 nm-1100 nm) available upon request



Select number of products
