 Manufacturing equipment


Dyenamo offers core pieces of equipment for laboratory device fabrication, i.e. the sealing machine DN-HM01, the manual table screen printer DN-HM02, the laboratory sintering oven DN-HM03, the spin coater DN-HM04, the glass cutter DN-HM14 and the hole drilling unit DN-HM15. We also offer custom-made solutions for process steps such as dye application, electrolyte filling, pick and place positioning equipment and dispensing solutions for e.g. adhesives or current collectors. In addition to the manufacturing equipment, Dyenamo offers state-of-the-art device materials for dye-sensitized and perovskite solar cells such as screen printing pastes, encapsulation materials, dyes (vibrant DSSC, organic, metal-organic) and perovskite materials. This means that Dyenamo provides an easy way for efficiently getting started with DSSC and Perovskite solar cell activities or for improving your existing cell manufacturing. If you are interested in a complete start-kit for fabrication of dye-sensitized or perovskite solar devices, please send a message to i...@info.se (protected address).

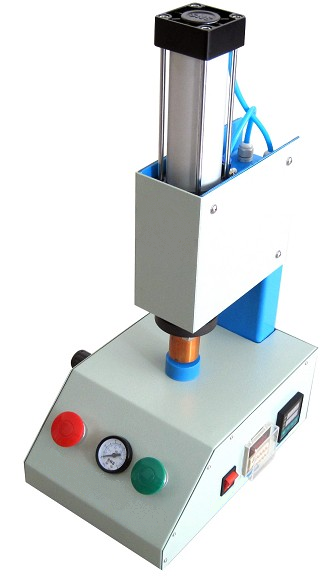

DN-HM01 – Sealing machine

Product description:
The sealing machine is designed for the sealing using a thermoplastic gasket between two electrodes in the application of dye-sensitized solar cells (DSSC). It provides the user with a convenient, rapid, safe, reliable and repeatable method for the assembly of DSSC. The sealing machine is flexible and suitable for cells with the dimension of < 25 mm × 25 mm. During a selected period of time a controlled pressure and temperature can be applied. The temperature range is 20 - 399 °C and the applied pressure corresponds to 400 - 2 000 N force. A compressed air or N2 source (< 1.0 MPa) is required for operation. The machine can also be used for closing filling holes. Members of the Centre for Molecular Devices is successfully using this tool since several years.

Device size:
Height: 560 mm, Width: 205 mm, Depth: 305 mm
Select number of products



DN-HM02 – Laboratory screen printer

Product description:
The manual table screen printer is designed to meet the requirements of DSSC research. It is easy to master and researchers can thus quickly start producing reproducible electrodes. The glass substrate can easily be mounted and efficeintly positioned using adjusting screws in x- and y-direction. With a screen size of 30 cm x 40 cm, we recommend to use the printer for substrate sizes up to 10 cm x 20 cm. In order to promote a fast and straightforward usage, the machine is delivered with a start-up kit, see below.

Device size:
Hight: 295 mm, Width: 500 mm, Depth 425 mm

Additional content:
English manual
1 Printing screen, 300x400 mm with polyester mesh
1 Positioning-plate
1 Squeegee with rubber
10 g TiO2 paste
1 Conducting glass plate with 18 TiO2 electrodes 6x6 mm (non-sintered)
1 FTO glass (8 ohm/square), 3.0 mm thick, 300 mm x 300 mm
Select number of products



DN-HM03 – Laboratory sintering oven

Product description:
DN-HM03 is a laboratory oven recommended for sintering electrodes. It has a high temperature accuracy and it is programmable with up to 30 steps. The chamber size is 150 x 150 x 150 mm. Other sizes can be obtained on demand by sending a message to i...@info.se (protected address).

Specifications:
  • Max. temperature:1 150 °C
  • Working temperature:≤ 1 100 °C
  • Temperature accuracy:+/- 1 °C
  • Chamber size:150 x 150 x 150 mm
  • Heating element:Alloy
  • Thermal couple:K type
  • Tank capacity:3L
  • Heating curves:30 steps programmable
  • Main power:4kW
Select number of products




DN-HM04 – Compact spin coater

Product description:
DN-HM04 is a compact, versatile, user-friendly table top spin coating equipment especially designed for laboratory solar cells. The small size makes it ideal for e.g. usage in a glovebox. The DN-HM04 has a user-friendly keyboard and a LED display for programming the key parameters, i.e. spin duration, spin speed (the speed resolution of 1 rpm) and acceleration. The substrate is held on a custom-made sample holder (up to 25x15 mm) and/or vacuum. The custom-made metal holder prevents the substrate from coming loose during rotation. In addition, we provide a universal sample holder in case of different sample sizes. The vacuum fixation allows usage of different substrate sizes from 10 to 100 mm. The oil-less pump is included in DN-HM04, i.e. it includes all you need to start using the equipment.
Specifications:
  • Dimension:250 x 210 x 200 mm
  • Chamber dimension:200 mm
  • Speed range:100 - 9999 rpm
  • Accelerated speed:100 - 9999 rpm
  • Speed accuracy:<5 rpm
  • Control:5 sets programmable control, each set with 5 steps
  • Motor power:Brushless DC Motor 75W
  • Wafer size:25 x 15 mm
  • Working voltage:AC 110 - 220 V, 50 Hz
  • Vacuum input:*0.06 - 0.09 Mpa
  • Pump speed:*> 15 l/min
*One oil-less vacuum pump is included in the standard package

Select number of products



DN-HM14 – Glass cutter

Product description:
Conventional laboratory glass cutting tables require manual pressure, first in order to scratch the glass in the position where it should be cut, and subsequently in order to break the glass into two. In addition, these pieces of equipment require continuous quality control to verify that the cutting wheels are operating adequately. A consequence of this is that glass cutting is a craftsmanship requiring special skills. In most laboratories, one or a few people master these skills. Thus, it is challenging for laboratories where many people cut glass to avoid waste due to failure in glass cutting. In addition, glass pieces cut in non-exact sizes often create problems when processed into e.g. solar cell devices. DN-HM14 has been developed to avoid this problem. It is a user-friendly table top equipment where no manual pressure is involved in cutting or breaking the glass pieces. The equipment provides exact cuts with a high precision (<0.1 mm) for glass thickness of 1 to 5 mm in glass sizes from 25 mm x 25 mm up to 300 mm x 300 mm. The rubber holding clamp in combination with the millimeter-scaled size definition open for cutting bare glass as well as more challenging configurations such as several working or counter electrodes into single units.

Additional information:
This product is produced by Elixir Technologies in India. Dyenamo is exclusive distributor for this piece of equipment outside India.
Specifications:
  • Dimension:460 x 450 x 550 mm
  • Weight:17 kg
  • Minimum glass size:25 mm x 25 mm
  • Maximum glass size:300 x 300 mm
  • Minimum glass thickness:1 mm
  • Maximum glass thickness:5 mm
  • Accuracy:< 0.15 mm
  • Cutting wheel material:Tungsten Carbid
  • Requirements for compressed air:*4 Bar
*Required to operate the equipment

Select number of products



DN-HM15 – Hole drilling equipment

Product description:
DN-H15 has been developed to allow making precise holes in glass substrates without breaking the glass. The hole-drilling sequence is programmed in a desired pattern. The equipment provides high-quality holes at high precision.

Additional information:
This product is produced by Elixir Technologies in India. Dyenamo is exclusive distributor for this piece of equipment outside India.
Specifications:
  • Dimension:460 x 460 x 550 mm
  • Interface:3.5 inch touch display
  • Maximum substrate size:150 x 150 mm
  • Hole size:Ø 0.8 - 2.5 mm
  • Positioning accuracy:10 µm
  • Cooling medium:Water
  • Power supply:230 V AC, 50/60 Hz

Select number of products



On demand manufacturing solutions for DSSC devices


Dyenamo provides custom-made manufacturing solutions for DSSC cells and modules. These are tailor-made according to your device size and design. Typical process steps are dye application, electrolyte filling, pick and place positioning equipment and dispensing solutions for e.g. adhesives or current collectors.

These products are produced by Elixir Technologies in India. Dyenamo is exclusive distributor for these pieces of equipment outside India.

For more information, please send a message to i...@info.se (protected address) with a description of the equipment you are looking for.
