Manufacturing kits

It is well known that chemistry-based solar cells such as perovskite solar cells and dye-sensitized solar cells (DSSC) are difficult in practice and that it takes a lot of experience to obtain reproducible, well-performing devices. In addition, several expensive pieces of equipment, such as the glovebox for perovskite devices, create a big entrance hurdle to the field for many laboratories. Dyenamo offers economic start-up kits for perovskite and low-power dye-sensitized solar cells, respectively. These kits include all necessary pieces of equipment and materials and a thorough manual for device fabrication.

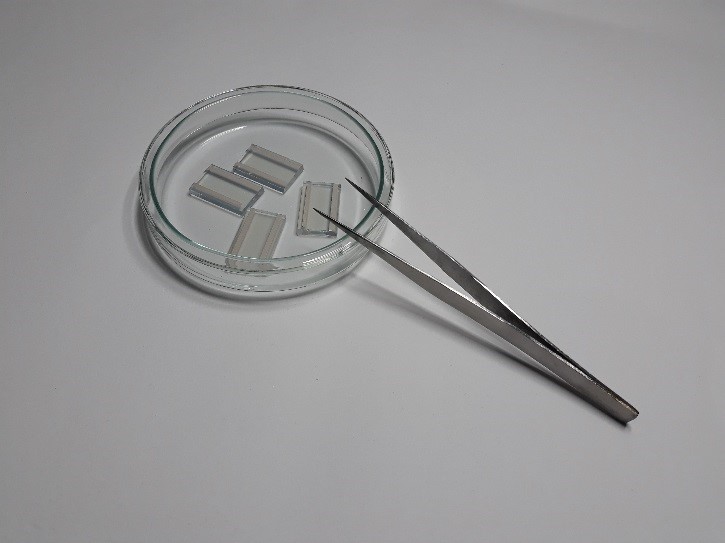

DN-K01

Perovskite cell manufacturing kit









Dyenamo perovskite kit is a glove-box-based solution including all manufacturing steps for making glass-based perovskite solar cells, starting from electrodes with a TiO2 layer. The kit includes all materials needed for making 160 perovskite cells. The manufacturing is based on spin-coating the perovskite in combination with a carbon back-contact. A one-year license to Dyenamo's thorough fabrication manual, as well as 4 hours of technical support is included in the kit.



Contact us for a quotation

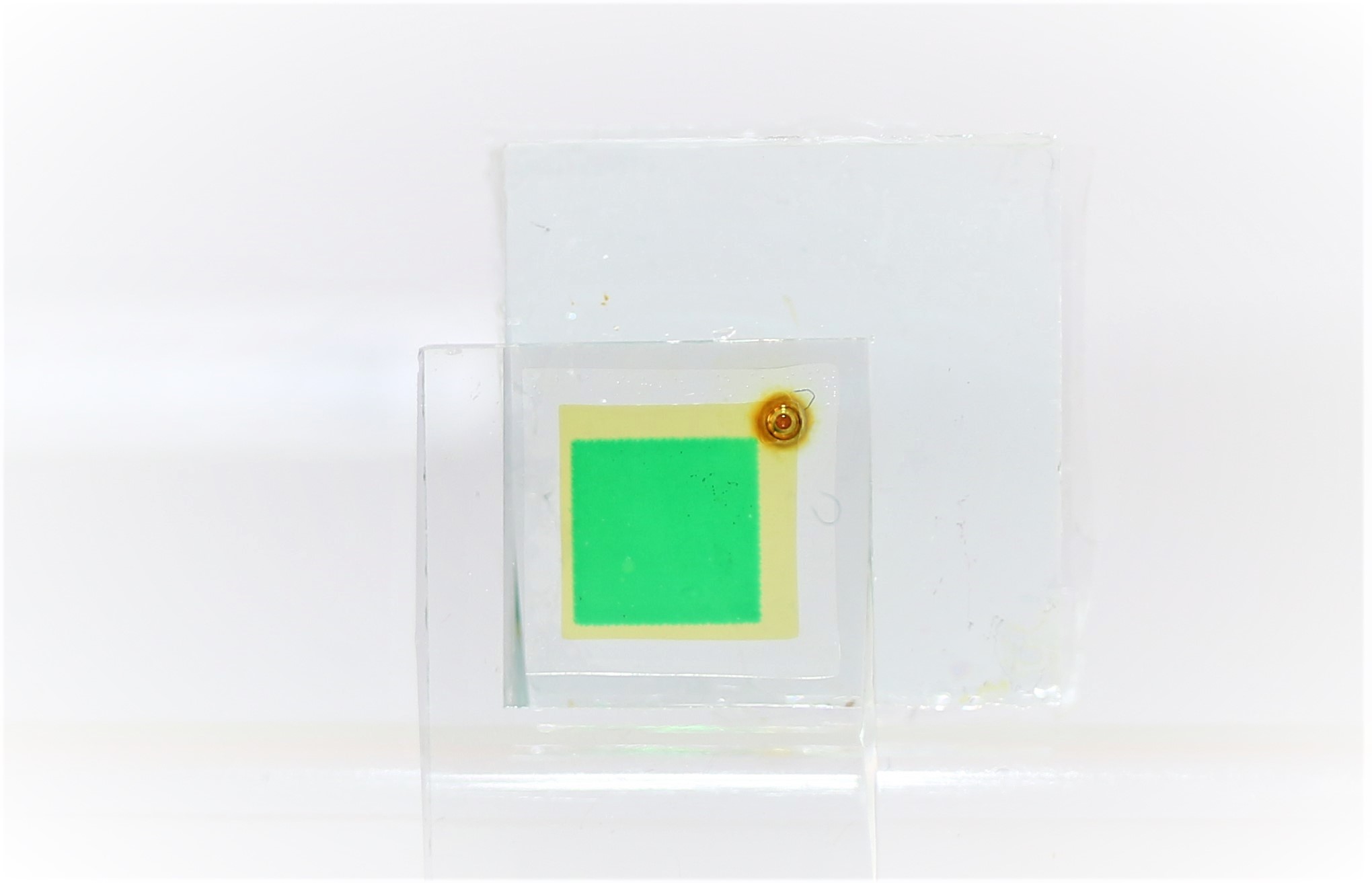

DN-K02

DSSC cell manufacturing kit for low-power applications






This manufacturing kit for low-power DSSC is Dyenamo's response to the increasing interest in R&D on low-power DSSC. It includes all manufacturing steps for manufacturing laboratory low-power dye-sensitized solar cells. Moreover, the kit includes all materials needed for making at least 200 glass-based DSSC cells for low-power application of the size of approximately 1 cm2. The manufacturing is based on screen-printing the TiO2 working and Pt counter electrodes, respectively, and sintering at appr. 500oC. A one-year license to Dyenamo's thorough manual for device fabrication, combined with 8 h technical support is included in the kit. In addition, the kit includes an IV-characterization tool for enabling measurement of the electrical output under ambient light. The kit allows laboratories to efficiently test their own materials in low-power DSSC devices and/or provides an easy entrance to inhouse evaluation of the DSSC technology.



Contact us for a quotation


DN-K03

DSSC module manufacturing kit for low-power applications




Dyenamo's custom-made manufacturing kits for low-power DSSC modules are Dyenamo's response to the increasing industrial interest for low-power DSSC. It includes all manufacturing steps for making small, glass-based, serial-connected low-power DSSC solar modules starting from custom-made screen-printed electrodes, i.e. we prepare the electrodes according to your requirements (size, voltage etc.). Moreover, the kit includes all materials needed for making a defined number of such devices designed for low-power applications.



Contact us for a quotation
