Home > Manufacturing equipment > DN-HM02

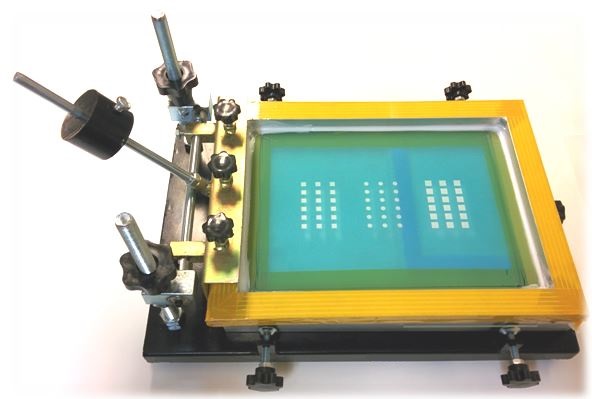

Laboratory screen printer

Product description:
The manual table screen printer is designed to meet the requirements of DSSC research. It is easy to master and researchers can thus quickly start producing reproducible electrodes. The glass substrate can easily be mounted and efficeintly positioned using adjusting screws in x- and y-direction. With a screen size of 30 cm x 40 cm, we recommend to use the printer for substrate sizes up to 10 cm x 20 cm. In order to promote a fast and straightforward usage, the machine is delivered with a start-up kit, see below.

Device size:
Hight: 295 mm, Width: 500 mm, Depth 425 mm

Additional content:
English manual
1 Printing screen, 300x400 mm with polyester mesh
1 Positioning-plate
1 Squeegee with rubber
10 g TiO2 paste
1 Conducting glass plate with 18 TiO2 electrodes 6x6 mm (non-sintered)
1 FTO glass (8 ohm/square), 3.0 mm thick, 300 mm x 300 mm

Select number of products
